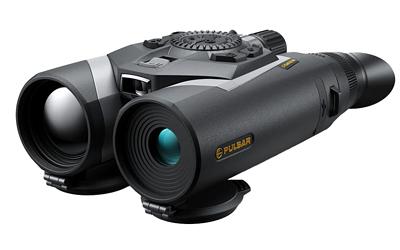

Pulsar Symbion LRF DXT50 Multispectral Range Finding Binocluar PL77456, 2-16x, Black

Description

The Symbion LRF DXT50 brings thermal imaging to an entirely new standard. Its stunning 1280x1024px thermal sensor produces ultra-high-definition images, brimming with fine detail and clarity—perfect for flawless animal identification. Every silhouette, anatomical feature, and subtle movement comes into sharp focus, empowering you to observe wildlife with unparalleled precision.

Symbion LRF DXT50

Main

• Sensor 1280×1024 @ 12 µm (NETD <40 mK)
• Objective lens 50mm / F1.0
• Magnification, x 2 – 16
• Field of view (HxV), degrees / m@100m 17.5 / 30.7
• Detection range, yards 2515

Sensor

• Type uncooled
• Resolution, pixels 1280×1024
• Pixel pitch, µm 12
• NETD, mK <40
• Frame rate, Hz 50
• sNETD, mK <20

Optics

• Objective lens 50mm / F1.0
• Magnification, x 2 – 16
• Field of view (HxV), degrees / m @ 100 m 17.5 / 30.7
• Eye relief, mm 13
• Type AMOLED

Display

• Resolution, pixels 1920×1080

Range Performance

• Detection range, yards 2515

Laser Rangefinder

• Safety class for laser equipment according to IEC 60825-1:2014 1
• Wavelength, nm 905
• Max. measuring range, yards 1640
• Measurement accuracy, m ±1

Video Recorder

• Video / photo resolution, pixel 1920×1080
• Video / photo format .mp4 / .jpg
• Built-in memory, GB 64

Wi-Fi

• Wireless Protocol Wi-Fi
• Wireless Standard IEEE 802.11 b/g/n/ac
• Frequency, GHz 2.4 / 5

Environmental Characteristics

• Degree of protection, IP code (IEC60529) IP67
• Operating temperature range, °F -13 – 122

Connections and Compatibilities

• Mount, type 1/4″ socket
• Supported Application Stream Vision 2 / Stream Vision Ballistics

Power Supply

• Battery type APS5
• Operating time on battery pack (at t=71°F), h * 8
• External power supply, V 5V / 9V (USB Type-C Power Delivery)

Weight & Size

• Body material Magnesium alloy
• Dimensions, mm 207 × 132 × 72.5
• Weight, lbs 2.2
